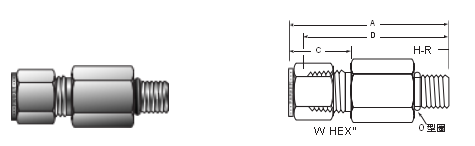

SAE/MS長型外螺紋接頭 英制
CPI? 訂貨號 |
A-LOK? 訂貨號 |
互換型號 | 英寸 | ST O-RING UNIFORM SIZE NO. | |||||||
T 卡套端 | SAE/MS 螺紋端 |
A |
R |
C |
D | E MIN. OPENING | W HEX | ||||
4-4 ZH3BA | 4-4 ZH3LA | 400-1L-4ST | 1/4 | 7/16-20 | 2.26 | .36 | 0.70 | 1.97 | .19 | 9/16 | -904 |
6-6 ZH3BA | 6-6 ZH3LA | 600-1L-6ST | 3/8 | 9/16-18 | 2.48 | .39 | 0.76 | 2.19 | .28 | 11/16 | -906 |
8-8 ZH3BA | 8-8 ZH3LA | 810-1L-8ST | 1/2 | 3/4-16 | 3.01 | .44 | 0.86 | 2.58 | .41 | 7/8 | -908 |
12-12 ZH3BA | 12-12 ZH3LA | 1210-1L-12ST | 3/4 | 1-1/16-12 | 3.88 | .59 | 0.86 | 3.48 | .62 | 1-1/4 | -912 |
16-16 ZH3BA | 16-16 ZH3LA | 1610-1L-16ST | 1 | 1-5/16-12 | 4.34 | .59 | 1.04 | 3.86 | .88 | 1-1/2 | -916 |
